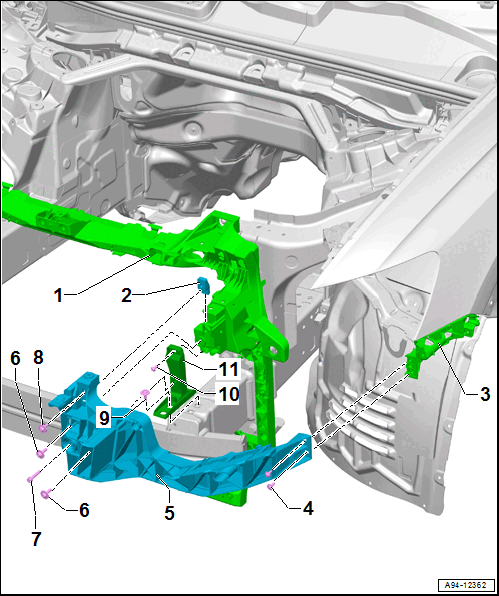

Overview - Headlamps, Headlamp Mount
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Lock Carrier
- For mounting the headlamp
- Removing and Installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
- Securing Tab
- Mount
- For the bumper cover
- To secure the headlamp mount
- Removing and Installing. Refer to FENDER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 3 Nm
- Mount
- For headlamp
- Removing and installing. Refer to HEADLAMP MOUNT, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 8 Nm
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Bolt
- Quantity: 2
- 8 Nm
- Bolt
- 4.5 Nm
- Support
- For the headlamp mount
- Removing and Installing. Refer to OVERVIEW - LOCK CARRIER .
