Component Location Overview - Relay Panel, Instrument Panel, E-Boxes, Luggage Compartment, 48 Volt System
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

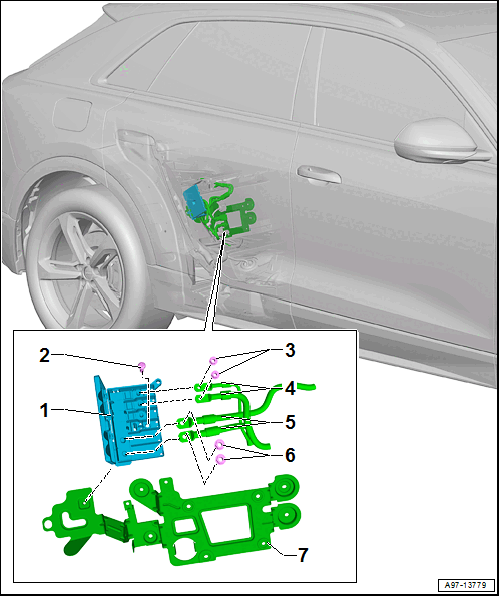

- Terminal 40 Wire Junction 2 -TV67-
- Removing and installing. Refer to Terminal 40 Wire Junction 2 -TV67-, REMOVING AND INSTALLING .
- Bolt
- 3.5 Nm
- Nut
- Quantity: 2
- 9 Nm
- Line
- Allocation. Refer to the appropriate Wiring Diagram.
- Line
- Allocation. Refer to the appropriate Wiring Diagram.
- Nut
- Quantity: 2
- 20 Nm
- Bracket
- For Terminal 40 Wire Junction 2 -TV67- and Voltage Converter, 48 V/12 V -A7-
- Removing and installing. Refer to Voltage Converter, 48 V/12 V -A7-, REMOVING AND INSTALLING .
