Overview - Seat Heating Element

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

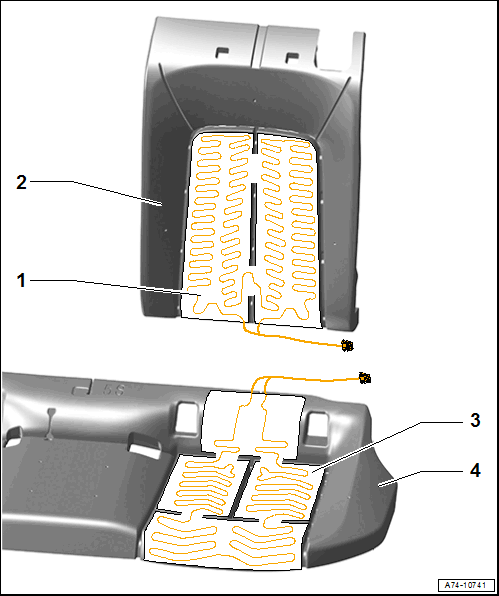

Fig 1: Exploded View Of Rear Seat Heating Element

Courtesy of AUDI

Backrest Heating Element
- Rear Seat Backrest
- Left Rear Backrest Heating Element - Z11-, Right Rear Backrest Heating Element - Z13-
- Removing and installing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
Backrest Cushion
- When replacing, apply a new heating element. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
Seat Heating Element
- Rear Bench Seat
- Left Rear Bench Seat Heating Element -Z10-, Right Rear Bench Seat Heating Element -Z12-
- Removing and installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING .
Seat Cushion
- When replacing, apply a new heating element. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING .
