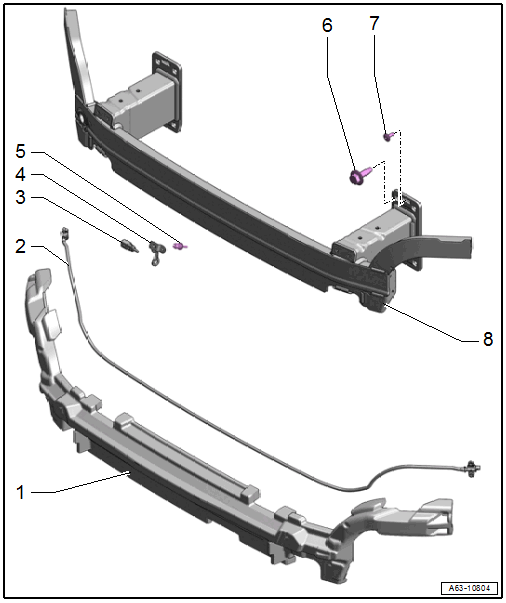

Overview - Impact Member
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Molded Foam Part
- Market-Specific Version
- Removing and Installing. Refer to MOLDED FOAM PART, REMOVING AND INSTALLING .
- Driver Side Pedestrian Protection Crash Sensor 2 -G851- /Front Passenger Side Pedestrian Protection Crash Sensor 2 -G852-
- Unit with pressure hose
- Observe the conditions for replacing the Driver Side Pedestrian Protection Crash Sensor 2 -G851- /Front Passenger Side Pedestrian Protection Crash Sensor 2 -G852-. Refer to OVERVIEW - PEDESTRIAN PROTECTION
- Overview. Refer to OVERVIEW - PEDESTRIAN PROTECTION .
- Outside Air Temperature Sensor -G17-
- Removing and Installing. Refer to OUTSIDE AIR TEMPERATURE SENSOR -G17-, REMOVING AND INSTALLING .
- Bracket
- For Outside Air Temperature Sensor -G17-
- Equipped on some models. Refer to the appropriate Electronic Parts Information for allocation.
- Removing and Installing. Refer to Outside Air Temperature Sensor -G17- BRACKET, REMOVING AND INSTALLING .
- Expanding Rivet
- Bolt
- 60 Nm
- Quantity: 4
- Bolt
- 4.5 Nm
- For securing the impact member to the lock carrier
- Impact Member
- There are different versions. Refer to the appropriate Parts Information.
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING .
