Hook Release Lever, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

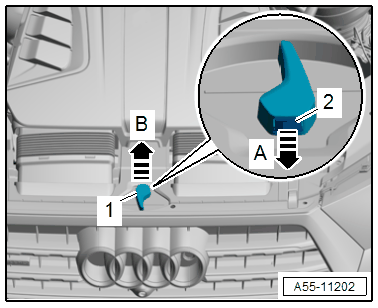

-- Pull the clip -2- out of the release lever -1- slightly -arrow A- using a small screwdriver.

GWWA55-11202Courtesy of AUDI

-- Remove the release lever upward -arrow B-.
