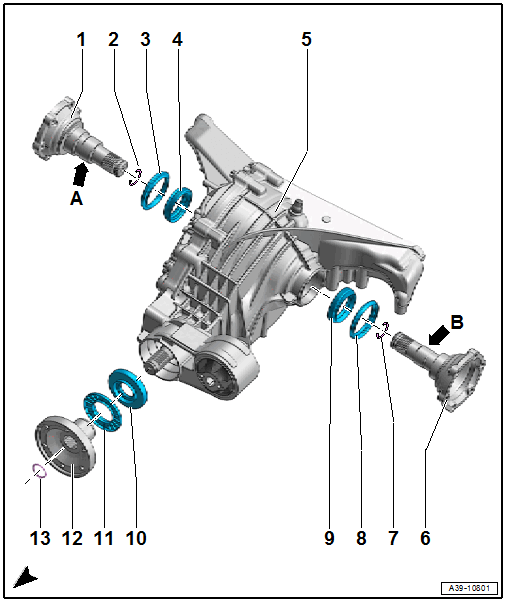

Component Location Overview - Seals, 0DB, 0D2 And 0G1 / 0G2
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Right Flange Shaft
- Removing and Installing. Refer to RIGHT SEAL, REPLACING .
- Final drive 0DB: the right and left flange shaft are identical
- Final drive 0D2: -Arrow a- shaft diameter approximately 40 mm
- Circlip
- Always replace.
- Right Protective Ring
- Replacing. Refer to FLANGE SHAFT PROTECTIVE RING, REPLACING .
- Right Seal
- Replacing. Refer to RIGHT SEAL, REPLACING .
- Rear Final Drive
- Refer to FINAL DRIVE, REMOVING AND INSTALLING
- Left Flange Shaft
- Removing and Installing. Refer to LEFT SEAL, REPLACING .
- Final drive 0DB: the right and left flange shaft are identical
- Final drive 0D2: -Arrow B- shaft diameter approximately 32 mm
- Circlip
- Always replace.
- Left Protective Ring
- Replacing. Refer to FLANGE SHAFT PROTECTIVE RING, REPLACING .
- Left Seal
- Replacing. Refer to LEFT SEAL, REPLACING .
- Input Shaft Seal
- Replacing. Refer to INPUT SHAFT SEAL, REPLACING .
- Protective Ring on Flange/Driveshaft
- Replacing. Refer to FLANGE/DRIVESHAFT PROTECTIVE RING, REPLACING .
- Flange/Driveshaft
- Removing and Installing. Refer to INPUT SHAFT SEAL, REPLACING .
- Circlip
