Rear Final Drive 0D2, 0G2 And 0DG, Removing And Installing, AUDI Q7, Q8

Special tools and workshop equipment required

• Engine and Gearbox Jack:VAS 6931
  Fig 1: Engine and Gearbox Jack VAS6931 or VAG1383A

  Courtesy of AUDI
• Torque Wrench 1332 Insert - Ring Wrench - 21mm:V.A.G 1332/7
  Fig 2: Identifying Torque Wrench 1332/7

  Courtesy of AUDI
• Torque Wrench 80-400Nm:V.A.G 1576
  Fig 3: Identifying Torque Wrench V. A. G 1576

  Courtesy of AUDI

Final Drive, Removing:

Pay attention to the general repair information. Refer to REPAIR INFORMATION .

-- Place the vehicle on a hoist.

-- Remove the driveshaft on the rear final drive. Refer to DRIVE SHAFT, REMOVING FROM REAR FINAL DRIVE AND INSTALLING .

Fig 4: Install the driveshaft on the rear final drive.

Courtesy of AUDI

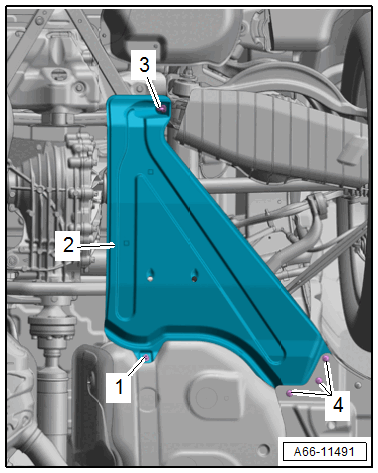

-- Remove the bolts -1, 3 and 4- and the cover -2-.

Courtesy of AUDI

Vehicles with diagonal braces

Courtesy of AUDI

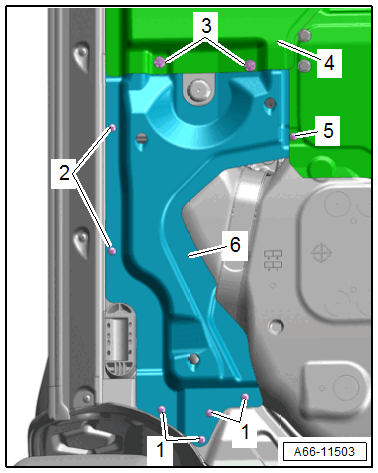

-- Remove the left underbody trim panel -6-.

-- Remove the nuts -3-.

-- Remove the bolts -1, 2 and 5-.

-- Remove the bolts -1 to 3- and the left diagonal brace.

Courtesy of AUDI

Continuation for All

Fig 5: Heat Shield - Bolts

Courtesy of AUDI

-- Remove the bolts -arrows- and the left drive axle heat shield -1-.

-- Remove the bolts for the left and right drive axle -arrows-.

Courtesy of AUDI

-- Guide the drive axle out of the flange shaft and move it to the side.

-- Remove the bolts on both sides -arrows- and lower the stabilizer bar.

Courtesy of AUDI

Vehicles with air suspension

Courtesy of AUDI

-- Remove the nuts -arrows- and remove the cover for the air supply unit -1-.

-- Remove the bolts -arrows- and remove the solenoid valve block -1- from the bracket -2- and disengage on the side.

Courtesy of AUDI

Continuation for All

Courtesy of AUDI

-- Remove the nut -1-.

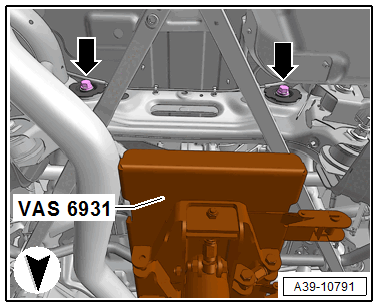

-- Place the Engine and Gearbox Jack:VAS 6931  with the Universal Transmission Support under the rear final drive.

-- Remove the bolt -2-.

-- Remove the bolts for the rear final drive -arrows-.

Courtesy of AUDI

-- Carefully lower the rear final drive.

-- Pivot the rear final drive on the left side upward and remove the right side downward.

-- Then guide out the left side downward past the exhaust pipe.

-- Guide out the final drive with the driveshaft flange past the stabilizer bar.

Final Drive, Installing:

Courtesy of AUDI

Install in reverse order of removal.

-- Bring the rear final drive into its installation position using the Engine and Gearbox Jack:VAS 6931  and Universal Transmission Support.

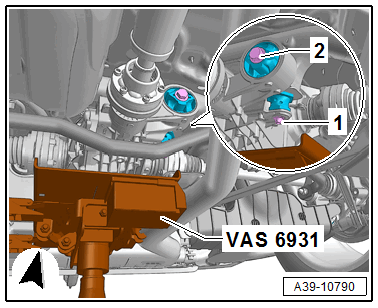

-- Install the bolt -2- hand-tight.

-- Install the bolts -arrows- for the rear final drive and tighten.

Courtesy of AUDI

-- Tighten the bolt -2- with the Torque Wrench, 80-400Nm:V.A.G 1576A  and the Torque Wrench 1332 Insert - Ring Wrench - 21mm:V.A.G 1332/7  .

Courtesy of AUDI

-- Tighten the nut -1-.

-- Remove the Engine and Gearbox Jack:VAS 6931  from under the final drive.

Vehicles with air suspension

Courtesy of AUDI

-- Tighten the solenoid valve block -1- on the bracket -2- -arrows-.

-- Tighten the air supply unit cover -1- using the nuts -arrows-.

Courtesy of AUDI

Continuation for All

-- Insert and tighten the drive axles. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

Fig 6: Heat Shield - Bolts

Courtesy of AUDI

-- Install the left flange shaft heat shield -1-.

-- Install the driveshaft on the rear final drive. Refer to Figure.

Fig 7: Install the driveshaft on the rear final drive.

Courtesy of AUDI

-- Tighten the stabilizer bar -arrows-.

Courtesy of AUDI

-- If removed, install the diagonal brace. Refer to DIAGONAL BRACES, REMOVING AND INSTALLING .

-- Install the underbody trim panel. Refer to OVERVIEW - UNDERBODY TRIM PANELS .

-- Check the gear oil level in the rear final drive. Refer to GEAR OIL, CHECKING LEVEL .

Tightening specifications:

• Refer to OVERVIEW - DRIVE AXLE .
• Refer to OVERVIEW - STABILIZER BAR .
• Refer to COMPONENT LOCATION OVERVIEW - ELECTRICAL COMPONENTS .
• Refer to OVERVIEW - UNDERBODY BRACING .
• Refer to OVERVIEW - UNDERBODY TRIM PANELS .
• Refer to OVERVIEW - REAR FINAL DRIVE, AUDI Q7 AND Q8
• Refer to OVERVIEW - DRIVESHAFT
