OVERVIEW - HOUSING, 0B0 "quattro ultra"

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

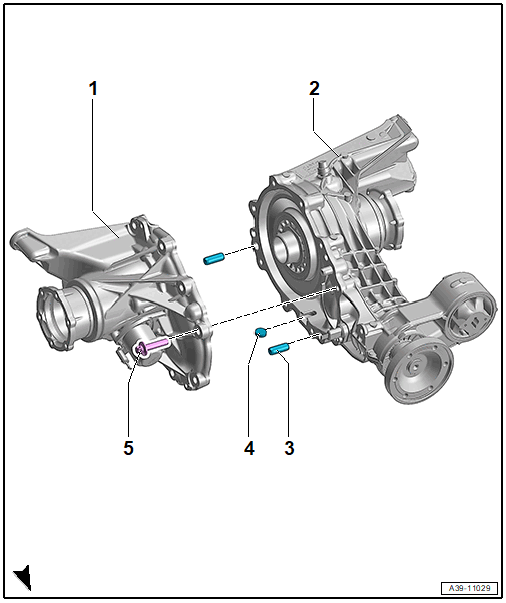

Fig 1: Exploded View Of Rear Final Drive Housing (0B0 "quattro ultra")

Courtesy of AUDI

Housing
- With all-wheel drive clutch
Housing
- With differential
Centering Pin
- Quantity: 2
Magnet
- Always clean
Bolt
- Tightening specification and sequence. Refer to Fig 2.

Tightening specification and sequence of housing bolts

Fig 2: Rear Final Drive Housing Tightening Sequence

Courtesy of AUDI

	Bolt	Tightening specification
1.	1 to 9	Install all the way by hand
2.	1 to 9	30 Nm
3.	1 to 9	Re-tighten to 45°
