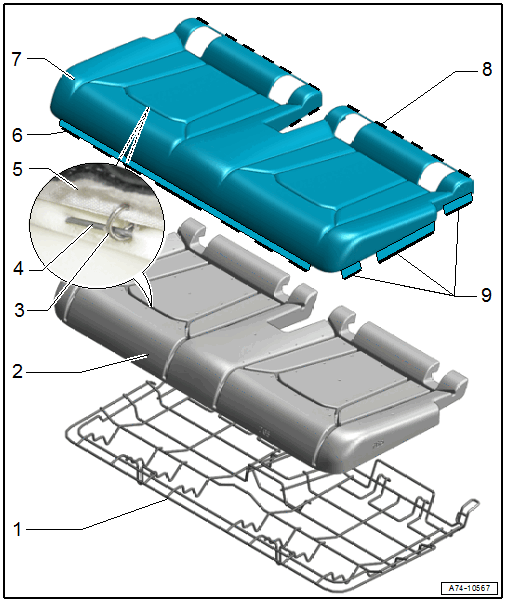

Overview - Cover And Cushion, Third Row Seat Pan

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Seat Frame
Cushion
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, THIRD ROW SEAT PAN .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, THIRD ROW SEAT PAN .
Upholstery Clip
- For securing the cover to the cushion
- Replace after removing.
- Install at the same location with Upholstery Clip Pliers:VAG1634 .
Wire
- Encapsulated in cushion
- For securing the cover to the cushion
Contour Wire
- Pushed into the cover mounting pocket
- For securing the cover to the cushion
Molding
- Sewn into cover
- For attaching the cover to the seat frame
- Check for proper seating
Cover
- Check that there are no folds after installing
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, THIRD ROW SEAT PAN .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, THIRD ROW SEAT PAN .
Molding
- Sewn into cover
- For attaching the cover to the seat frame
- Check for proper seating
Molding
- Sewn into cover
- For attaching the cover to the seat frame
- Check for proper seating
