Seat Pan Cover And Cushion, Removing And Installing, Seat Without Seat Depth Adjuster: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Secure the front seat to the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the tunnel-side seat side trim. Refer to SEAT SIDE TRIM ON TUNNEL SIDE, REMOVING AND INSTALLING .

-- Remove the seat side trim on the side sill side and remove the bracket. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .

-- Remove the backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING .

-- Equipped on some models: remove the child seat anchor. Refer to FRONT CHILD SEAT ANCHOR, REMOVING AND INSTALLING .

-- Versions: observe the notes for the passenger occupant detection system. Refer to PASSENGER OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING .

-- Release, disconnect and free up the connectors. Refer to MODULAR WIRING ROUTING, DISCONNECTING AND CONNECTING .

-- Detach the molding -1, 2 and 7- of the seat cover in the front and side areas using the :3370 .

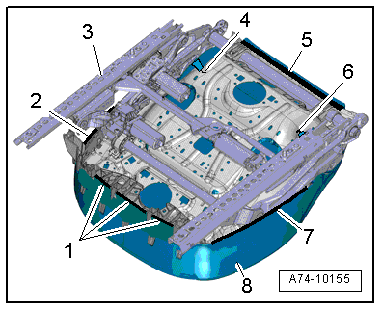

Fig 1: Identifying Lower Seat Frame Cover And Cushion Components

Courtesy of AUDI

-- Detach seat cover molding -5- in the rear area using the :3370 .

-- Disengage the left and right tab hooks -4, 6- on the seat pan -3-.

-- Remove the seat cover and seat cushion -8- from the seat pan while guiding the seat heating wiring harness.
