Seat Bolster Cushion On Seat Pan, Removing And Installing, Seat With Seat Depth Adjuster: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Secure the front seat to the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the front seat trim. Refer to FRONT SEAT TRIM, REMOVING AND INSTALLING .

-- Remove the tunnel-side seat side trim. Refer to SEAT SIDE TRIM ON TUNNEL SIDE, REMOVING AND INSTALLING .

-- Remove the seat side trim on the side sill side. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .

-- Remove the backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING .

-- Equipped on some models: remove the child seat anchor. Refer to FRONT CHILD SEAT ANCHOR, REMOVING AND INSTALLING .

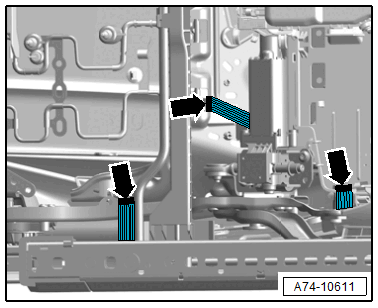

-- Disengage the cover molding at the rear of the seat pan -arrow- using the :3370 .

Courtesy of AUDI

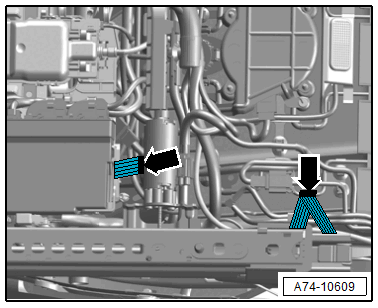

-- Disengage the molding on the tunnel side -2- using the :3370 .

Courtesy of AUDI

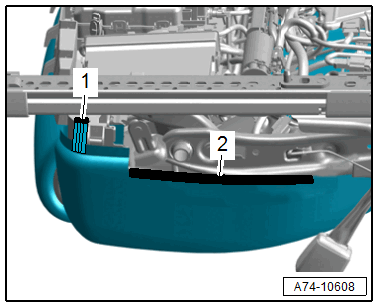

-- Disengage the tab -1-.

-- Disengage the tabs on the tunnel-side -arrows- and pound the cover upward over the seat bolster cushion.

Courtesy of AUDI

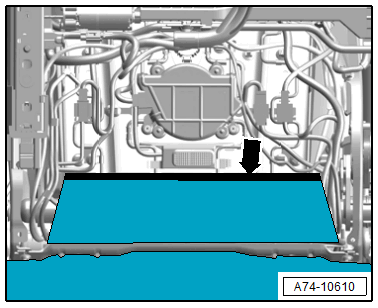

-- Disengage the tabs on the side sill side -arrows- and pound the cover upward over the seat bolster cushion.

Courtesy of AUDI

-- Equipped on some models: release and disconnect the connector and free up the wire for the heating element.

-- Remove the seat bolster cushion.
