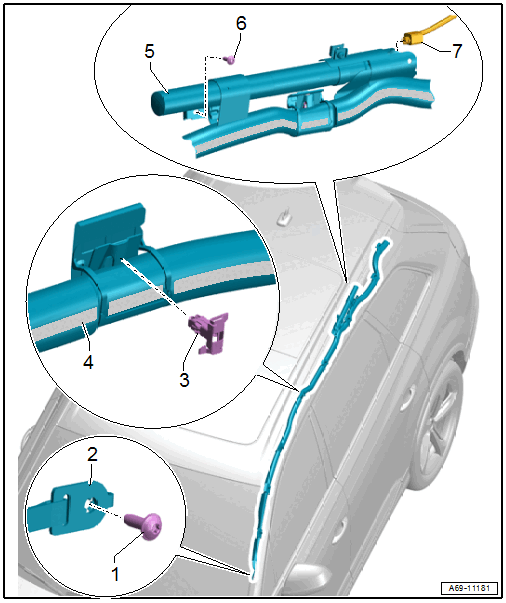

Overview - Head Curtain Airbag
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Replace after removing.
- 5 Nm
- Strap
- Clamp
- Available only with -item 5-
- Remove with Clip Pliers:VAS211 001
- Colored Strip
- Serves as anti-rotation protector
- must be visible after assembly.
- Head Curtain Airbag
- Driver side: with Driver Head Curtain Airbag Igniter -N251-
- Front passenger side: with Front Passenger Head Curtain Airbag Igniter -N252-
- Removing and Installing. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- Bolt
- Replace after removing.
- 5 Nm
- Connector
- Driver side: for Driver Head Curtain Airbag Igniter -N251-
- Front passenger side: for the Front Passenger Head Curtain Airbag Igniter -N252-
