Terminal 40 Wire Junction -TV66-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

-- De-energize the 48V system. Refer to 48V SYSTEM, DE-ENERGIZING .

-- Release the latch in direction of -arrow- and open the cover -1-.

-- Remove the nuts -3, 4 and 5- and free up the wires -1, 2 and 6-.

Courtesy of AUDI

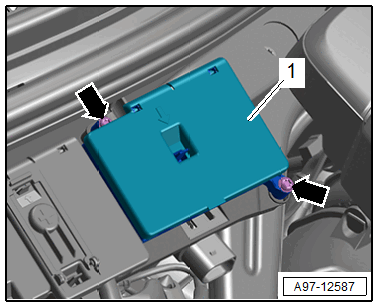

-- Remove the bolts -arrows-.

Courtesy of AUDI

-- Remove the 48V system wire junction -1-.
