Front Wheel Housing Liner, Removing And Installing, Rear Section: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

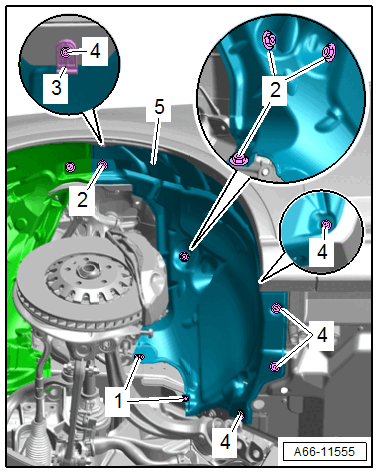

-- Remove the expanding rivets -1-.

GWWA66-11555Courtesy of AUDI

-- Remove the nuts -2- and bolts -4-.

-- Disengage the bracket -3- from the fender.

-- Remove the wheel housing liner -5-.
