Front Tunnel Brace, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the heat shield for the front tunnel brace. Refer to HEAT SHIELD FOR FRONT TUNNEL BRACE, REMOVING AND INSTALLING .
-- Remove the bolts -arrows-.
-- Vehicles with TDI engine: remove the tunnel brace.
-- Vehicles with gasoline engine: remove the exhaust system clamping sleeves. Refer to OVERVIEW - MUFFLER - 2.0L , OVERVIEW - MUFFLER - 3.0L .

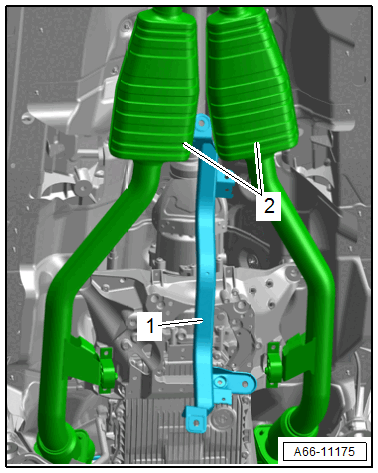

-- Remove the tunnel brace -1- forward from between the center mufflers -2-.
