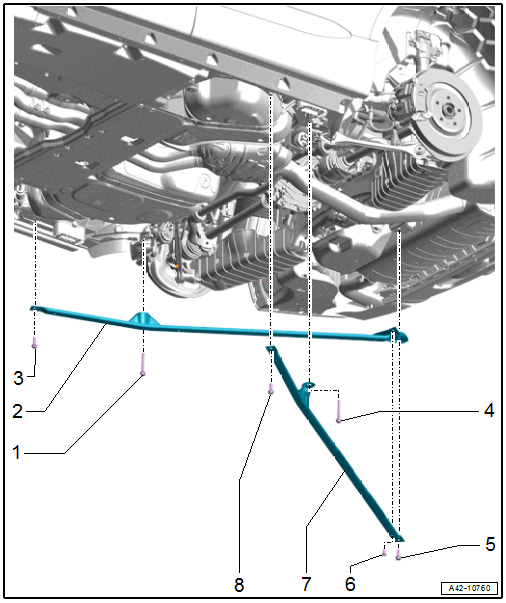

Overview - Diagonal Brace
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Tightening specification. Refer to OVERVIEW - SUBFRAME .
- Right Diagonal Brace
- Removing and Installing. Refer to DIAGONAL BRACES, REMOVING AND INSTALLING .
- Bolt
- 49 Nm
- Bolt
- Tightening specification. Refer to OVERVIEW - SUBFRAME .
- Bolt
- Replace after removing
- 50 Nm + 45°
- Bolt
- 25 Nm
Vehicles with High-Voltage System
- Nut: 10 Nm
- 25 Nm
- Left Diagonal Brace
- Removing and Installing. Refer to DIAGONAL BRACES, REMOVING AND INSTALLING .
- Bolt
- 49 Nm
