Rear Lid Closing Assist Motor -V382-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

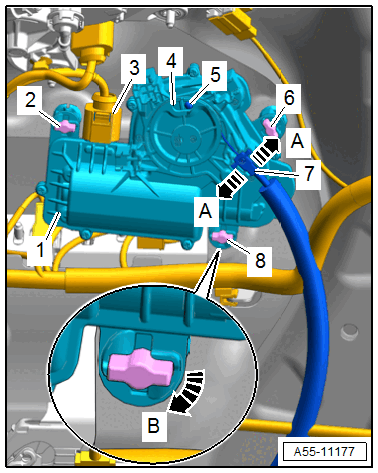

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .
-- Disengage the cable bracket -7- to do so release the catches -A arrows-.
-- Disengage the cable nipple -5- on the operating lever -4-.
-- Disconnect the connector -3-.
-- Release the catches -2, 6 and 8- 90° clockwise -arrow B-.
-- Remove the Rear Lid Closing Assist Motor -V382- -item 1-.
