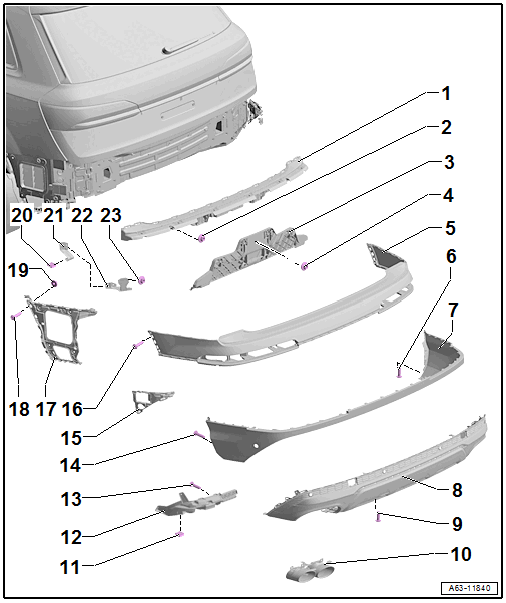

Overview - Bumper Cover, From Product Improvement
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Mount
- Center
- For the bumper cover
- Removing and Installing. Refer to CENTER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Nut
- Quantity: 6
- 4 Nm
- Mount
- Lower
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
- Nut
- Quantity: 4
- 3 Nm
- Bumper Cover Upper Section
- Removing and Installing. Refer to BUMPER COVER UPPER SECTION, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 2.5 Nm
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Spoiler
- Removing and Installing. Refer to SPOILER, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Bolt
- Quantity: 4
- 2.5 Nm
- Tail Pipe
- Equipped on some models
- Overview. Refer to OVERVIEW - MUFFLER - 2.0L , OVERVIEW - MUFFLER - 3.0L .
- Spring Nut
- Quantity: 8
- End Panel
- Equipped on some models
- Removing and Installing. Refer to END PANEL, REMOVING AND INSTALLING .
- Bolt
- Quantity: 8
- 4 Nm
- Bolt
- Quantity: 2
- 2.5 Nm
- Mount
- for lane change assistance control module
- Removing and Installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULE -J769- /LANE CHANGE ASSISTANCE CONTROL MODULE 2 -J770-, REMOVING AND INSTALLING
- Bolt
- Quantity: 4
- 2.5 Nm
- Mount
- Side
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, SIDE .
- Bolt
- Quantity: 4
- Tightening sequence. Refer to Fig 2.
- Nut
- Quantity: 2
- 5 Nm
- Spring Nut
- Bracket
- For the tail pipe
- Equipped on some models
- Bracket
- For the Telephone Antenna -R65- / LTE Antennas 1 and 2 -R297/R306-
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - ANTENNA SYSTEMS .
- Nut
- Quantity: 2
- Tightening specification. Refer to COMPONENT LOCATION OVERVIEW - ANTENNA SYSTEMS .
Bumper Cover Side Mount - Tightening Specification and Sequence
-- Tighten the bolts in the sequence shown -1, 2, 4 and 3- to 3 Nm.
