Bumper Cover Lower Section, Removing And Installing, From Product Improvement: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Loosen the wheel cover in the bumper cover area. Refer to WHEEL COVER, REMOVING AND INSTALLING, REAR .

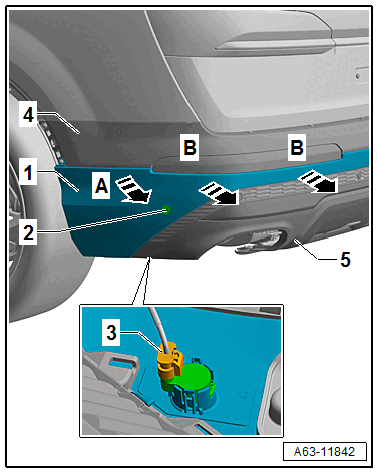

-- Remove the bolts -1, 2, and 3-.
-- If equipped, disconnect the connector -3- on the sensor for the parallel parking assist -2- at the left and right.
-- Disengage the side bolster from the bumper cover lower section -1- on the bumper cover upper section -4- outward -arrow A-.
-- Remove the bumper cover lower section -1- rearward from the bumper cover upper section -4- and remove the spoiler -5- -B arrows-.
-- Place the bumper cover lower section on a soft surface.
