Bumper Cover Mount, Removing And Installing, Bottom: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Versions with trailer hitch: remove the bumper carrier. Refer to BUMPER CARRIER, REMOVING AND INSTALLING, WITH TRAILER HITCH .

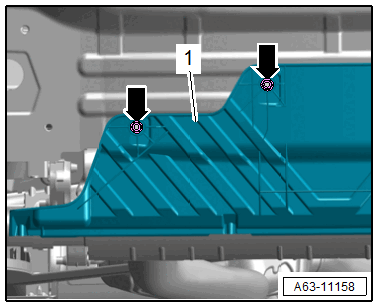

-- Remove the nuts -arrows-.

GWWA63-11158Courtesy of AUDI

-- Remove the bumper cover mount -1-.
