Overview - Bumper Cover, From Product Improvement

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

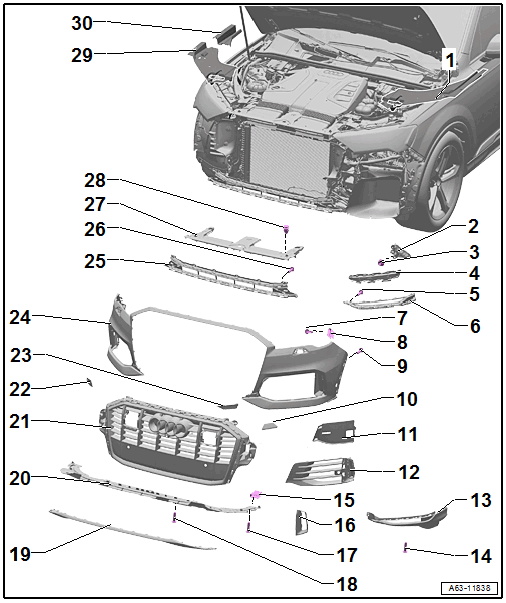

Fig 1: Exploded View Of Bumper Cover, From Product Improvement

Courtesy of AUDI

Headlamp Cover
- Left
- Removing and Installing. Refer to HEADLAMP COVER, REMOVING AND INSTALLING .
Mount
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Nut
- Quantity: 5
- 4 Nm
Cap
- For the side air duct
- Removing and Installing. Refer to SIDE AIR DUCT, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
Bolt
- 2.5 Nm
Air Duct
- Side
- Removing and Installing. Refer to SIDE AIR DUCT, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
Bolt
- Quantity: 4
- 2.5 Nm
Clip Nut
- Quantity: 5
Bolt
- 3 Nm
Washer Nozzle Cover
- For the headlamp washer system
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
Cap
- For the air intake grille
- Removing and Installing. Refer to AIR INTAKE GRILLE CAP, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
Air Intake Grille
- Removing and Installing. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
Front Spoiler
- Removing and Installing. Refer to FRONT SPOILER, REMOVING AND INSTALLING .
Bolt
- 3 Nm
Locking Nut
- Quantity: 4
Insert
- For the air intake grille
- Removing and Installing. Refer to AIR INTAKE GRILLE INSERT, REMOVING AND INSTALLING .
Bolt
- Quantity: 8
- 2.5 Nm
Bolt
- Quantity: 2
- 4.5 Nm
Impact Guard
- Removing and Installing. Refer to IMPACT GUARD, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
End Panel
- The bumper cover
- Removing and Installing. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
Radiator Grille
- Overview. Refer to OVERVIEW - RADIATOR GRILLE, FROM PRODUCT IMPROVEMENT .
Cover
- For the towing eye
Trim
- Removing and Installing. Refer to TRIM, REMOVING AND INSTALLING .
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Air Duct
- Center
- Removing and Installing. Refer to CENTER AIR DUCT, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
Bolt
- Quantity: 4
- 2.5 Nm
Lock Carrier Cover
- Removing and Installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
Expanding Clip
- Quantity: 5
Headlamp Cover
- Right
- Removing and Installing. Refer to HEADLAMP COVER, REMOVING AND INSTALLING .
Cover
- Right
- For the VIN
- Removing and Installing. Refer to HEADLAMP COVER, REMOVING AND INSTALLING .
