Side Air Duct, Removing And Installing, From Product Improvement: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the end panel for the bumper. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
-- Free up the wires from the air duct.
-- Release the retainers -arrows-.
-- Remove the cap -1-.

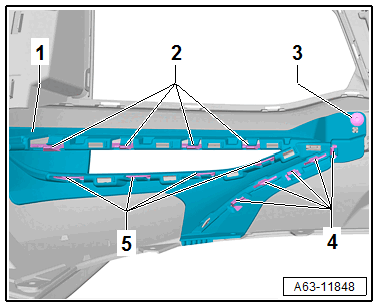

-- Remove the bolt -3-.
-- Release the retainers -2, 4 and 5-.
-- Remove the air duct -1-.
