Center Air Duct, Removing And Installing, From Product Improvement: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the impact guard. Refer to IMPACT GUARD, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
-- Remove the side air duct. Refer to SIDE AIR DUCT, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .

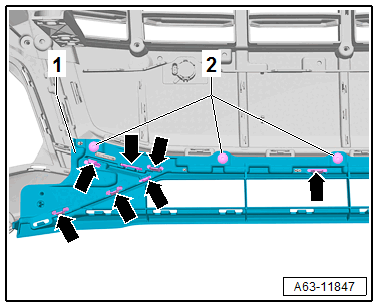

-- Remove the bolts -2-.
-- Release the retainers -arrows-.
-- Remove the air duct -1-.
