Air Intake Grille Cap, Removing And Installing, From Product Improvement: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

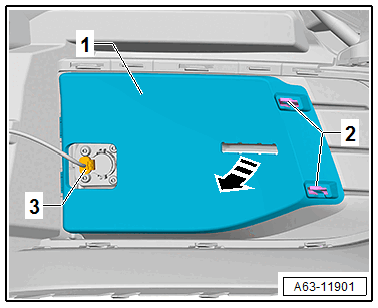

-- Disconnect the connector -3-.
-- Release the retainers -2-.
-- Pivot out the cap -1- from the air intake grille -arrow-.
