Rear Lid Tail Lamp, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn the light switch to position "0".
-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

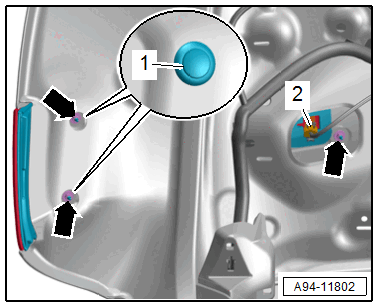

-- Disconnect the connector -2-.
-- Remove the grommets -1-.
-- Remove the nuts -arrows-.
-- Remove the tail lamp.
