Overview - High-Mounted Brake Lamp

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

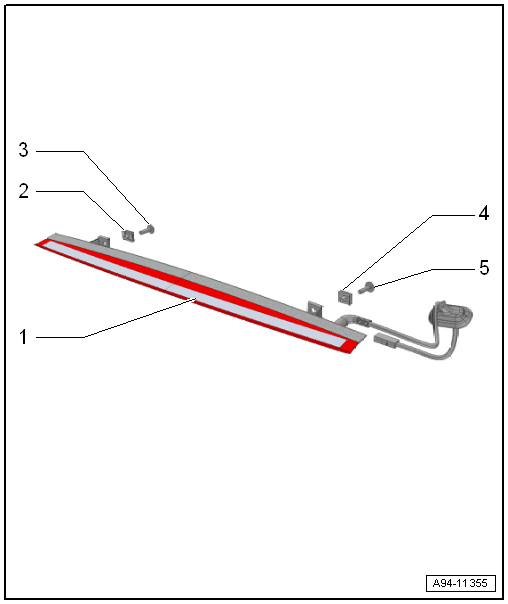

Fig 1: Exploded View Of High-Mounted Brake Lamp
GWWA94-11355Courtesy of AUDI
  1. High-Mounted Brake Lamp
  2. Spring Nut
  3. Bolt
    • 2.5 Nm
  4. Spring Nut
  5. Bolt
    • 2.5 Nm
