High-Mounted Brake Lamp, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the roof spoiler. Refer to SPOILER, REMOVING AND INSTALLING .

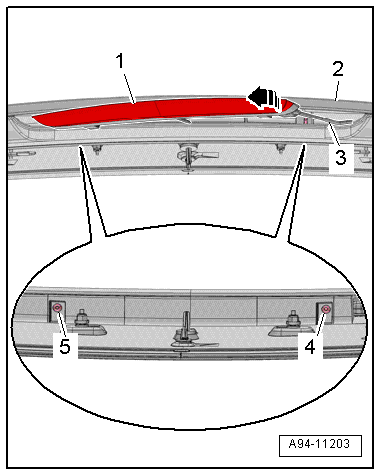

-- Remove the bolts -4 and 5-.
-- Pivot the high-mounted brake lamp -1- on the right side out of the roof spoiler -2- in direction of -arrow- and guide out the wiring harness -3-.
