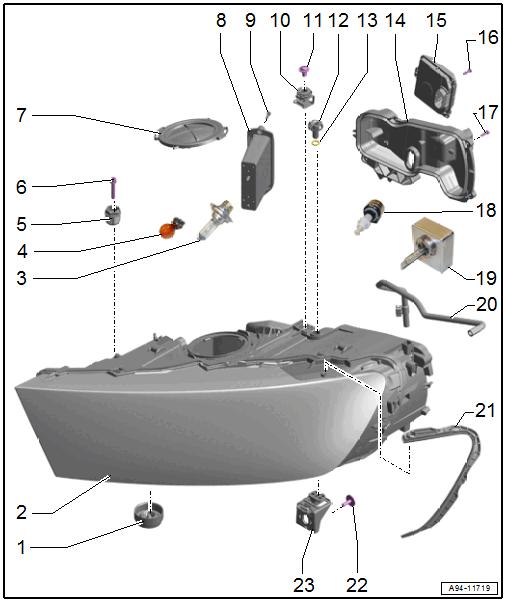

Overview - Headlamps, Hid Headlamps
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Filter Membrane
- Removing and Installing. Refer to FILTER MEMBRANE, REMOVING AND INSTALLING .
- Headlamp Housing
- With integrated Left Low Beam Headlamp Reflector Motor -V294-, Right Low Beam Headlamp Reflector Motor -V295-
- The trim for the low beams cannot be replaced separately.
- Replace the headlamp housing if faulty.
- Removing and Installing. Refer to HEADLAMP HOUSING, REMOVING AND INSTALLING .
- Bulb
- Left Front Fog Lamp Bulb -L22-, Right Front Fog Lamp Bulb -L23- (All-Weather Lamps)
- 12 V, 55 W (H7)
- Bulb, Replacing. Refer to Left Front Fog Lamp Bulb -L22- /Right Front Fog Lamp Bulb -L23-, REMOVING AND INSTALLING .
- Front Turn Signal Bulb
- Left Front Turn Signal Bulb -M5- /Right Front Turn Signal Bulb -M7-
- 12 V, 24 W
- Bulb, Replacing. Refer to Left Front Turn Signal Bulb -M5- /Right Front Turn Signal Bulb -M7-, REMOVING AND INSTALLING .
- Adjusting Nut
- For the headlamp height adjustment
- Bolt
- 4.5 Nm
- Housing Cover
- Daytime Running Lamp and Position Lamp LED Module
- Left Daytime Running Lamp and Position Lamp LED Module -L176-, Right Daytime Running Lamp and Position Lamp LED Module -L177-
- Removing and Installing. Refer to Left Daytime Running Lamp and Position Lamp LED Module -L176- /Right Daytime Running Lamp and Position Lamp LED Module -L177-, REMOVING AND INSTALLING .
- Bolt
- 0.9 Nm
- Quantity: 2
- Adjuster
- For adjusting the headlamp housing to the bumper contour
- Bolt
- 4.5 Nm
- Height Adjustment Screw
- Seal
- Cannot be replaced separately If damaged replace the height adjustment screw
- Housing Cover
- Control Module for Light Control
- Left Light Control Module -J1018-, Right Light Control Module -J1023-
- Removing and Installing. Refer to Left Light Control Module -J1018- /Right Light Control Module -J1023-, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 3
- Bolt
- 1.5 Nm
- Quantity: 4
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48- / Right Headlamp Beam Adjustment Motor -V49-
- Removing and Installing. Refer to Left Headlamp Range Control Adjustment Motor -V48- /Right Headlamp Range Control Adjustment Motor -V49-, REMOVING AND INSTALLING .
- HID Headlamp Bulb
- Left HID Headlamp Bulb -L13- integrated in the Left HID Headlamp Control Module -J343-, Right HID Headlamp Bulb -L14- integrated in the Right HID Headlamp Control Module -J344-
- Removing and Installing. Refer to Left HID Headlamp Bulb -L13- /Right HID Headlamp Bulb -L14-, REMOVING AND INSTALLING .
- Breather Hose
- For the headlamp housing
- Sealing Frame
- Removing and Installing. Refer to SEALING FRAME, REMOVING AND INSTALLING .
- Bolt
- 4.5 Nm
- Headlamp Housing Bracket
- Removing and Installing. Refer to HEADLAMP MOUNT, REMOVING AND INSTALLING .
- Quantity: 2
Component Location - Automatic High Beam Assist Control ModuleJ844
- Integrated in the interior rearview mirror base.
TIP:
The Automatic High Beam Assist Control Module -J844- cannot be replaced separately. If faulty replace the interior rearview mirror. Refer to INTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .
