Left HID Headlamp Bulb -L13- /Right HID Headlamp Bulb -L14-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Extremely dangerous due to high-voltage.

When the headlamps are switched on, the HID headlamp components marked with the yellow high-voltage symbol are under high voltage. Electric shock may occur if components are contacted.

- Never touch the components marked with the yellow high-voltage symbols when the lighting is switched on.

- When performing procedures, switch off the ignition and all electrical equipment, and place the ignition key outside of the vehicle.

- Do not operate the flashers.

-- Remove the front wheel housing liner front section. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Remove the Left Light Control Module -J1018- or Right Light Control Module -J1023-. Refer to Left Light Control Module -J1018- /Right Light Control Module -J1023-, REMOVING AND INSTALLING .

Courtesy of AUDI

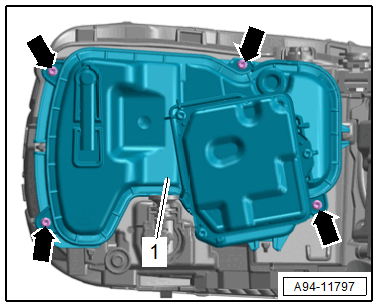

-- Remove the bolts -arrows-.

-- Remove the housing cover -1- as far as possible.

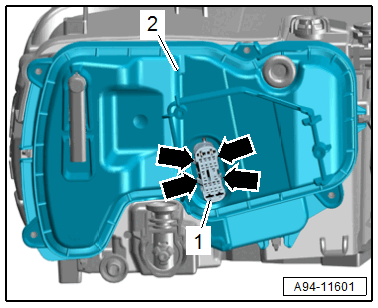

-- Release the catches -arrows- and pry up the connector -1- from the housing cover -2-.

Courtesy of AUDI

-- Remove the housing cover.

Courtesy of AUDI

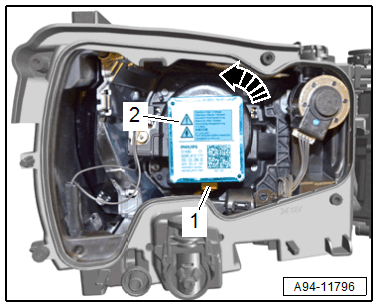

-- Turn the HID headlamp bulb -2- counter-clockwise -arrow- and remove it from the housing.

-- Disconnect the connector -1-.
