Left Front Turn Signal Bulb -M5- /Right Front Turn Signal Bulb -M7-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Extremely dangerous due to high-voltage.
When the headlamps are switched on, the HID headlamp components marked with the yellow high-voltage symbol are under high voltage. Electric shock may occur if components are contacted.
- Never touch the components marked with the yellow high-voltage symbols when the lighting is switched on.
- When performing procedures, switch off the ignition and all electrical equipment, and place the ignition key outside of the vehicle.
- Do not operate the flashers.
-- Remove the headlamp cover. Refer to Front Bumper .

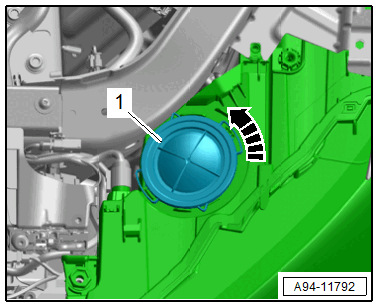

-- Turn the housing cover -1- counter-clockwise -arrow- and remove it from the headlamp housing.

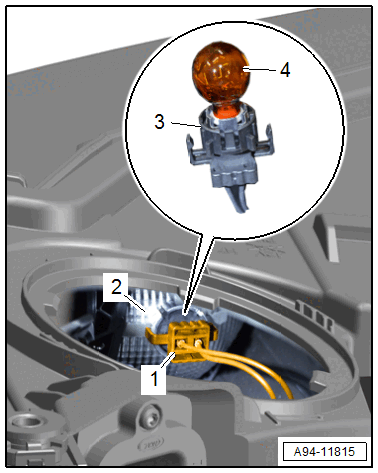

-- Remove the bulb socket -1- from the housing -2-.
-- Remove the bulb -4- from the bulb socket -3-.
