Headlamp Mount, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

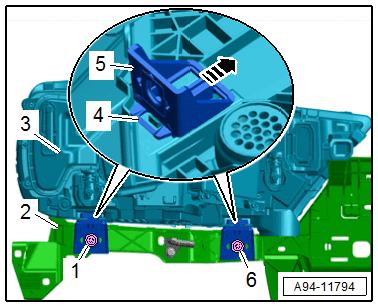

-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING .
-- Remove the bolts -1 and 6-.
-- Remove the mount -2-.
-- Release the catch -4- and remove the bracket -5- from the headlamp housing -3- in direction of -arrow-.
