Left Headlamp Fan 2 -V463- /Right Headlamp Fan 2 -V464-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the power output module 1 for LED headlamp. Refer to Right LED Headlamp Power Output Module 1 -A27- /Left LED Headlamp Power Output Module 1 -A31-, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .

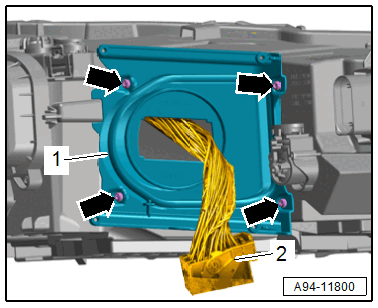

-- Remove the bolts -arrows-, remove the mount -1- at the same time guide out the wiring harness -2-.

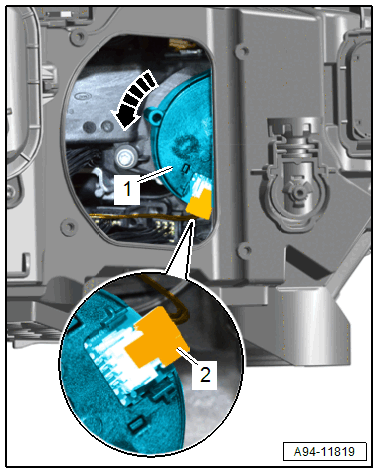

-- Turn the fan -1- counter-clockwise -arrow- and remove.
-- Press the release button and disconnect the connector -2-.
