Signature Lighting, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Left side: remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Right side: remove the air intake grille. Refer to OVERVIEW - BUMPER COVER .
-- Vehicles with ACC: remove the control module for the adaptive cruise control. Refer to CONTROL MODULE 2 FOR ADAPTIVE CRUISE CONTROL -J850-, REMOVING AND INSTALLING .

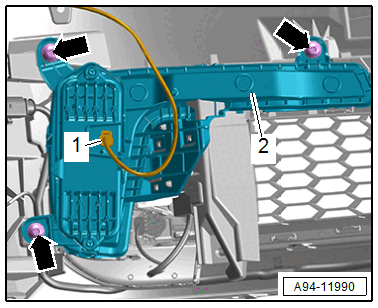

-- Remove the bolts -arrows-.
-- Remove the signature lighting -2-.
-- Disconnect the connector -1-.
