Left Signature Lighting Bulb -L275- /Right Signature Lighting Bulb - L276-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

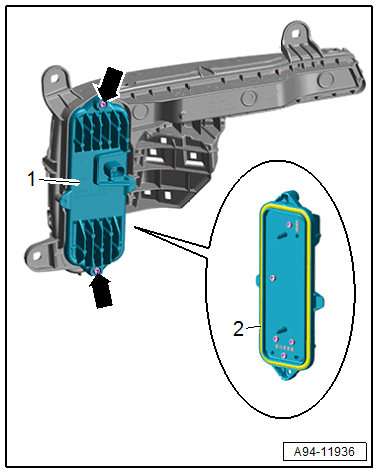

GWWA94-11936Courtesy of AUDI

-- Remove the signature lighting. Refer to SIGNATURE LIGHTING, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

-- Remove the signature lighting bulb -1-.
