Overview - Online Services, Excluding RUSSIA, Through My 2018 And From My 2019 Through Product Improvement, Without Connect Plus (IV0)

The mobile online services are based on the eCall and bCall, Connected Gateway, and the Data Bus on Board Diagnostic Interface -J533-.

The Data Bus on Board Diagnostic Interface -J533- is installed under the left front seat for crash safety. The Data Bus on Board Diagnostic Interface -J533- contains an emergency call module and a compass module. A separate SIM card is installed for the emergency call function and roadside assistance.

Courtesy of AUDI OF AMERICA, LLC

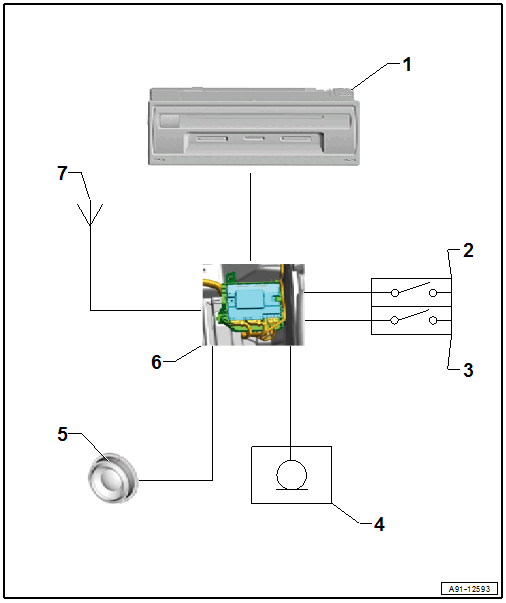

1. Information Electronics Control Module 1 -J794- in the Glove Compartment
2. Roadside Assistance Button -E275- in the Front Roof Module -WX3-
3. Emergency Call Button -E276- in the Front Roof Module -WX3-
4. Left Front Microphone -R140- in the Front Roof Module -WX3-
5. Emergency Call Module Speaker -R335- in the driver side instrument panel cover
6. Data Bus on Board Diagnostic Interface -J533- under the left front seat
7. GPS Antenna -R50- /Emergency Call Module Antenna -R263-
   • GPS Antenna -R50- in the Roof Antenna -R216-
   • Emergency Call Module Antenna -R263- through 11/27/2016 under the instrument panel to the front center, 4GF/4GS
   • Emergency Call Module Antenna -R263- through 11/27/2016 in the luggage compartment side trim panel to the left, 4GR/4GL
   • Emergency Call Module Antenna -R263- from 11/28/2016 always in the luggage compartment side trim panel to the left

Troubleshooting

The mobile online services system is capable of OBD.

Fault Finding is performed using the "Guided Fault Finding" on the Vehicle Diagnostic Tester .

When there are concerns about the function, it necessary to be familiar with the Mobile Online Services functions.

For additional information. Refer to the Owner's Manual and Wiring Diagram.
