Overview - Online Services, Excluding RUSSIA, From My 2019 Through Product Improvement, With Connect Plus (IV1 Through IV8)

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

The mobile online services are based on the C-box and the Control Module for Emergency Call Module and Communication Unit -J949-.

The Control Module for Emergency Call Module and Communication Unit -J949- is safeguarded against a crash by being installed under the right front seat. The Control Module for Emergency Call Module and Communication Unit -J949- contains an emergency call module and a compass module. A separate SIM card is installed for the emergency call function.

Courtesy of AUDI OF AMERICA, LLC

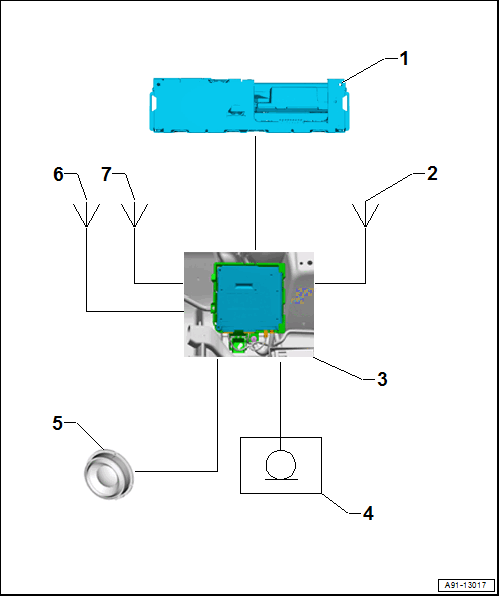

Information Electronics Control Module 1 -J794- in the Glove Compartment
GPS Antenna -R50- in the Roof Antenna -R216-
Control Module for Emergency Call Module and Communication Unit -J949- under the right front seat
Right Front Microphone -R141- in the Front Roof Module -WX3-
Emergency Call Module Speaker -R335- in the driver side instrument panel cover
Emergency Call Module Antenna -R263- in the left luggage compartment side trim panel
Emergency Call Module Antenna 2 -R322- in the Roof Antenna -R216-

Troubleshooting

The mobile online services system is capable of OBD.

Fault Finding is performed using the "Guided Fault Finding" on the Vehicle Diagnostic Tester .

When there are concerns about the function, it necessary to be familiar with the Mobile Online Services functions.

For additional information. Refer to the Owner's Manual and Wiring Diagram.
