Multimedia System Control Head -E380-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
The Multimedia Control Head -E380- is attached to the center console insert.
CAUTION:
The surfaces can get scratched very easily.
Carefully tape off all surfaces and sections!
-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
-- Remove the center console insert trim. Refer to DISPLAY CONTROL HEAD TRIM, REMOVING AND INSTALLING .
-- Release and disconnect the connector from the back of the Multimedia System Control Head -E380-.

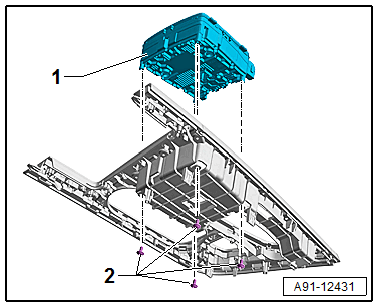

-- Remove the screws -2- and the Multimedia System Control Head - E380- -1- upward from the center console insert.
