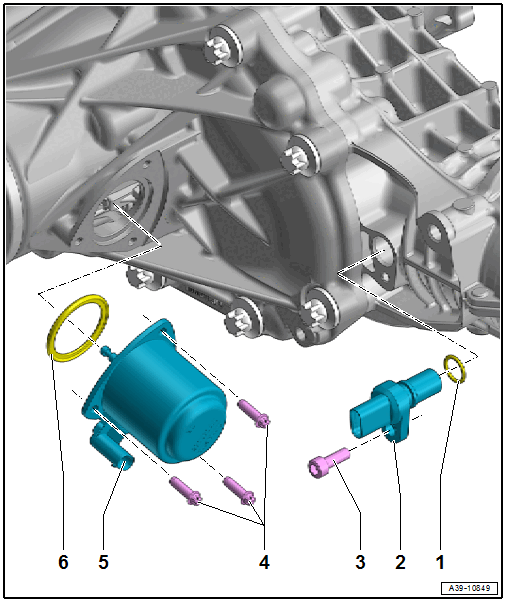

OVERVIEW - FINAL DRIVE, DISASSEMBLING AND ASSEMBLING, 0B0 "quattro ultra", 09R "quattro ultra"
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- O-Ring
- reuse
- Driveshaft Speed Sensor -G970-
- Removing and Installing. Refer to Driveshaft Speed Sensor -G970-, REMOVING AND INSTALLING, 0B0 "quattro ultra", 09R "quattro ultra" .
- Bolt
- 9 Nm
- Bolt
- 5 Nm
- Quantity: 3
- All-Wheel Drive Clutch Actuator 2 -V623-
Removing and Installing. Refer to All-Wheel Drive Clutch Actuator 2 -V623-, REMOVING AND INSTALLING, 0B0 "quattro ultra", 09R "quattro ultra" .
- Seal
- reuse
