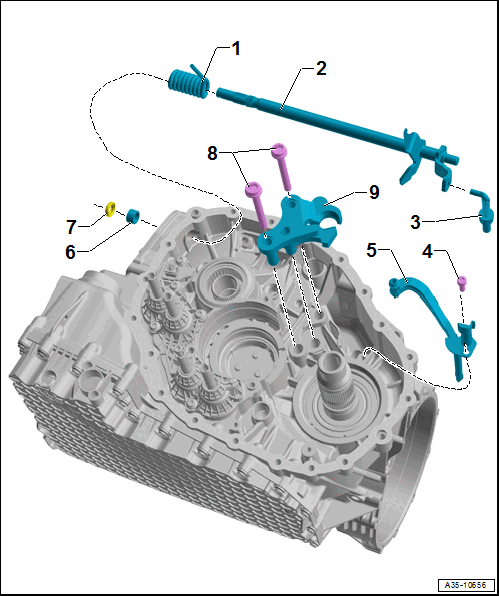

Overview - Parking Lock
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Spring
- Parking Lock Shaft
- Removing and Installing. Refer to Shaft for the parking lock, removing .
- Rest Linkage
- Bolt
- 5 Nm + 30°
- Oil line
- For the final drive
- Removing and Installing. Refer to PARKING LOCK, REMOVING AND INSTALLING .
- Sleeve
- Removing and Installing. Refer to Shaft for the parking lock, removing .
- Seal
- For the parking lock shaft
- Removing and Installing. Refer to Shaft for the parking lock, removing .
- Bolt
- Quantity: 2
- 20 Nm +90°
- Parking Lock
- Removing and Installing. Refer to PARKING LOCK, REMOVING AND INSTALLING .
