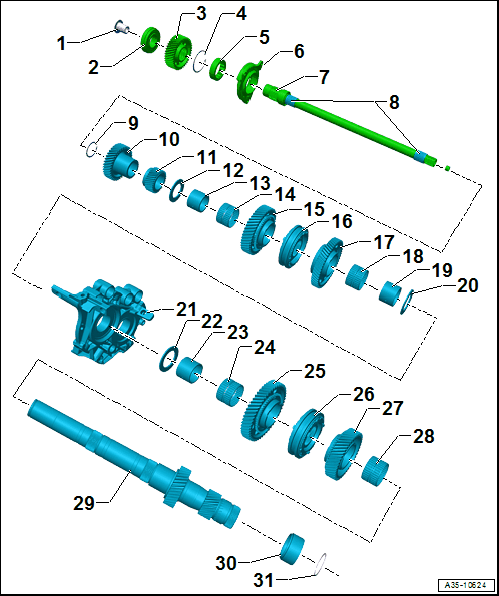

Overview - Output Shaft, Vehicles With Self-Locking Center Differential
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Internal Multi-Point Bolt
- Replace after removing
- 300 Nm
- Output Shaft Ball Bearing
- Bearing "H"
- Installation position: distance points to the drive wheel for spur gear unit OVERVIEW - OUTPUT SHAFT, VEHICLES WITH SELF-LOCKING CENTER DIFFERENTIAL
- Removing. Refer to Figure.

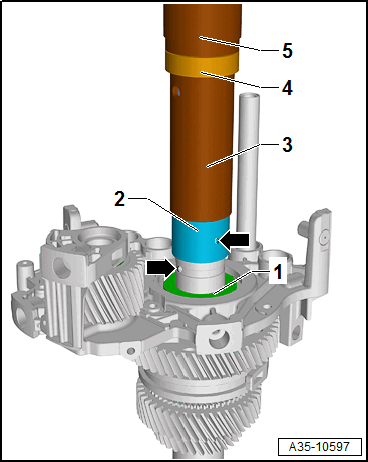

- Installing. Refer to Figure.
- Spur Gear Unit Drive Wheel
- Installation position: groove from the drive wheel for spur gear unit points to the output shaft ball bearing OVERVIEW - OUTPUT SHAFT, VEHICLES WITH SELF-LOCKING CENTER DIFFERENTIAL
- Removing. Refer to Figure.

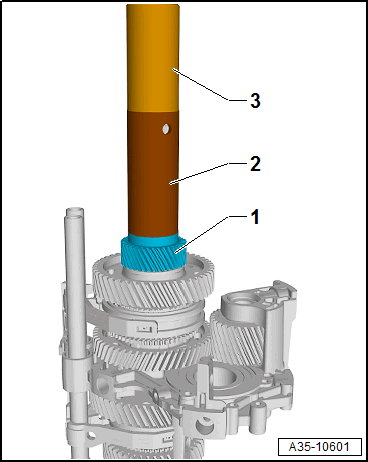

- Installing. Refer to Figure.
- Circlip
- Inner Output Shaft Roller Bearing
- Bearing Shell
- Inner Output Shaft
- Removing. Refer to Inner Output Shaft Roller Bearing, Removing, Vehicles with Self-Locking Center Differential .
- Installing. Refer to Fig 2.
- Disassembling and Assembling. Refer to INNER OUTPUT SHAFT, DISASSEMBLING AND ASSEMBLING, ONLY VEHICLES WITH SELF-LOCKING CENTER DIFFERENTIAL .
- Needle Bearing
- Bearing "31" and "33"
- Quantity: 2
- Circlip
- 4th Gear
- 6th Gear
- Thrust Washer
- For 2nd gear assembly
- Inner Race/Needle Bearing
- Needle Bearing
- For 2nd gear assembly
- 2nd Gear Assembly
- Synchronization
- For the 2nd gear assembly / reverse gear assembly
- Installation position: the bevel of the locking collar -arrow- points to the 2nd gear assembly
- Overview. Refer to Overview - Synchronization .
- Press out the synchronizer hub. Refer to Figure.

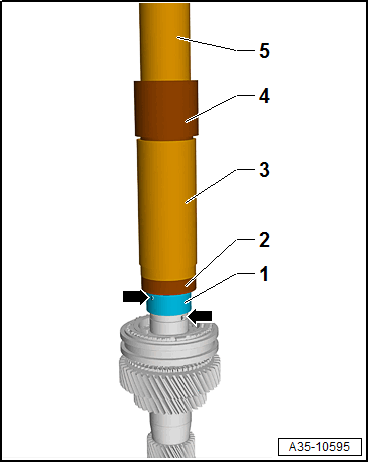

- Install the synchronizer hub. Refer to Figure.
- Reverse Gear Assembly
- Needle Bearing
- For reverse gear assembly
- Inner Race/Needle Bearing
- Thrust Washer
- For reverse gear assembly
- Bearing Bracket
- With reverse gear intermediate sprocket
- Overview. Refer to OVERVIEW - BEARING BRACKET .

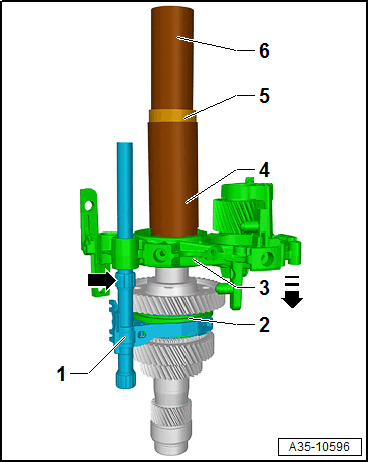

- Removing. Refer to Figure.

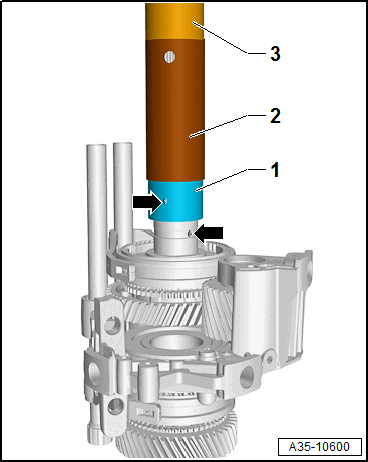

- Installing. Refer to Figure.
- Disassembling and Assembling. Refer to BEARING BRACKET, DISASSEMBLING AND ASSEMBLING .
- Thrust Washer
- For 1st Gear Assembly
- Inner Race/Needle Bearing
- Needle Bearing
- For 1st Gear Assembly
- 1st Gear Assembly
- Synchronization
- For 1st Gear Assembly / 3rd Gear Assembly
- Overview. Refer to Overview - Synchronization .
- Press out the synchronizer hub. Refer to Figure.
- Install the synchronizer hub. Refer to Figure.
- 3rd Gear Assembly
- Needle Bearing
- For 3rd gear assembly
- Outer Output Shaft
- With splines for 5th and 7th gears
- Removing and Installing. Refer to GEAR SET, DISASSEMBLING AND ASSEMBLING .
- Disassembling and Assembling. Refer to OUTPUT SHAFT, DISASSEMBLING AND ASSEMBLING .
- Bearing Inner Race
- Bearing "F"
- For output shaft roller sleeve
- Removing. Refer to AWD Vehicles .
- Installing. Refer to AWD Vehicles .
- Circlip
