Coolant Change-Over Valve 4 -N635-, REMOVING AND INSTALLING, AUDI Q5: Removing

WARNING: This page is about a different car, the 2024 Audi Q5 and 2023 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the muffler. Refer to MUFFLER, REMOVING AND INSTALLING .

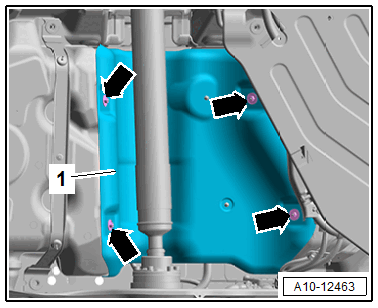

-- Remove the nuts -arrows- and remove the fuel tank heat shield -1-.

Courtesy of AUDI OF AMERICA, LLC

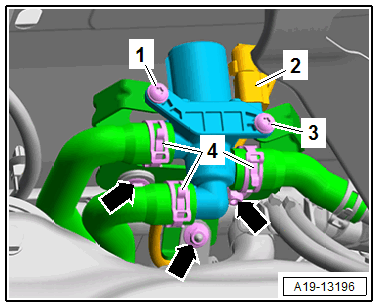

-- Remove the nuts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Place the Shop Crane - Drip Tray:VAS 6208 underneath.

-- Loosen the hose clamps -4- and remove the coolant hoses.

-- Remove the bolts -1 and 3- to do so counterhold if necessary.

-- Disconnect the connector -2- and remove the Coolant Change-Over Valve 4 -N635-. (Shown with the fuel tank removed).
