Coolant Change-Over Valve 3 -N634-, REMOVING AND INSTALLING, AUDI Q5, RHD: Removing
WARNING: This page is about a different car, the 2024 Audi Q5 and 2023 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the high-voltage battery heat exchanger and move it to the side. Refer to HIGH-VOLTAGE BATTERY HEAT EXCHANGER, REMOVING AND INSTALLING .

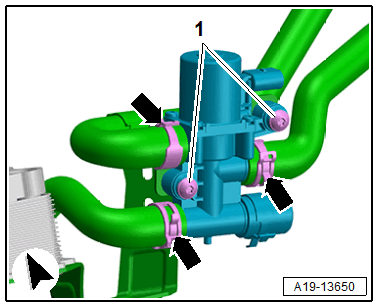

-- Remove the bolts -1-.
-- Clamp off the coolant hoses using the Hose Clamps - Up To 25mm:3094 .
-- Place a cloth underneath to catch leaking coolant.
-- Loosen the hose clamps -arrows- and remove the coolant hoses.
-- Remove the Coolant Change-Over Valve 3 -N634-.
