Release Button in Rear Lid Handle -E234-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .
-- Disconnect the connector -3-.

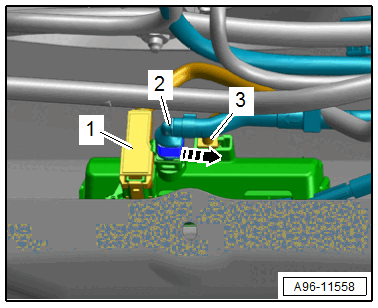

-- If equipped, disconnect the antenna wire -1-, release the clamp in the direction of -arrow- and remove the washer fluid hose -2-.

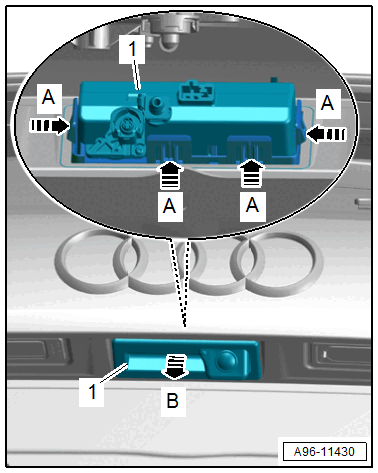

-- Release the retainers in the direction of -arrows A- and press the button -1- outward in the direction of -arrow B-.
