Overview - Vacuum Pump, 4.0L TFSI Engine

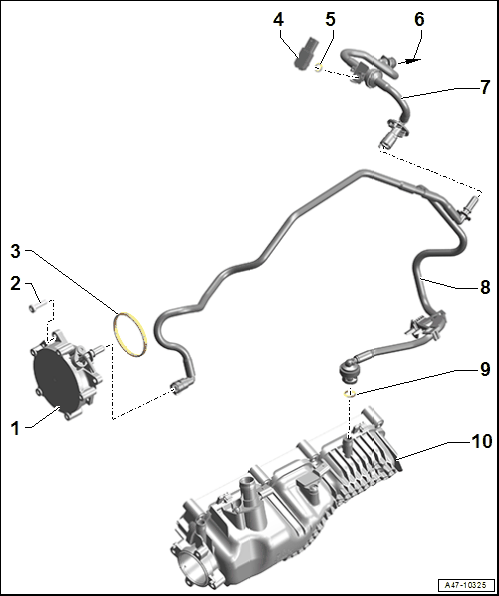

Fig 1: Exploded View Of Vacuum Pump, 4.0L TFSI Engine

Courtesy of AUDI OF AMERICA, LLC

Vacuum Pump
- Refer to VACUUM PUMP, REMOVING AND INSTALLING, VEHICLE WITH 4.0L TFSI ENGINE
Bolt
- 9 Nm
Seal
- Always replace after removing
Vacuum Sensor -G608-
- Refer to BRAKE BOOSTER PRESSURE SENSOR, REMOVING AND INSTALLING
O-Ring
- Cannot be replaced separately
- If damaged, replace the Vacuum Sensor -G608-
To the Brake Booster
Vacuum Line
- With integrated check valve; cannot be replaced separately
- Refer to CHECK VALVE, CHECKING
- Refer to CHECK VALVE, REMOVING AND INSTALLING, WITH VACUUM LINE IN PLENUM CHAMBER
Vacuum Line
O-Ring
- Always replace after removing
Intake Manifold
