Brake System Pressure Reservoir -VX70-, REMOVING AND INSTALLING: Removing

-- If replacing the Brake System Pressure Reservoir -VX70-, select the "Brake system pressure reservoir, replacing" program. Refer to DIAGNOSTIC ENTRIES .

-- Follow the instructions in the Vehicle Diagnostic Tester display.

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

-- Remove the windshield wiper motor. Refer to WINDSHIELD WIPER MOTOR -V-, REMOVING AND INSTALLING .

-- Insert the Brake Pedal Actuator: VAG1869/2 -item A- between the brake pedal and driver seat. Press the brake pedal down at least 60 mm (2.36 in.).

Courtesy of AUDI OF AMERICA, LLC

By doing this, the valves in the brake master cylinder are closed and the brake fluid reservoir does not run empty.

CAUTION:

Leaking brake fluid increases the risk of injury.

Risk of skin irritation and injury.

- Wear protective gloves and eyewear.

-- Remove the protective cap -3- from the bleed screw -1- on the left front caliper.

Fig 1: Identifying Protective Cap, Bleed Screw And Container Bleeder Hose

Courtesy of AUDI OF AMERICA, LLC

-- Connect the collection bottle hose -2- as shown.

-- Open the bleed screw to reduce the pressure in the brake system.

-- Close the bleed screw and remove the collection bottle.

-- Repeat the procedure on the left rear brake caliper.

Do not remove the Brake Pedal Actuator: VAG1869/2 .

-- To prevent brake fluid from escaping, place enough lint-free cloths in the area under the pressure reservoir.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the union bolt -3- and remove the brake line from the pressure reservoir -1-.

-- Immediately close open connection points with a clean plug.

-- Disconnect the connector -2-.

-- Pull the Brake System Pressure Reservoir -VX70- -item 1- upward from the retaining pins and remove it.

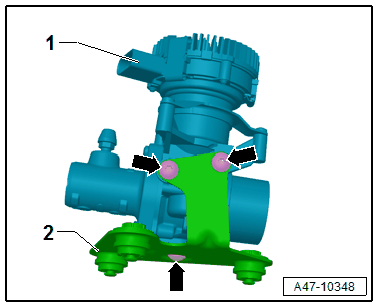

-- If the Brake System Pressure Reservoir -VX70- -item 1- needs to be replaced, remove the bolts -arrows- and the bracket -2-.
