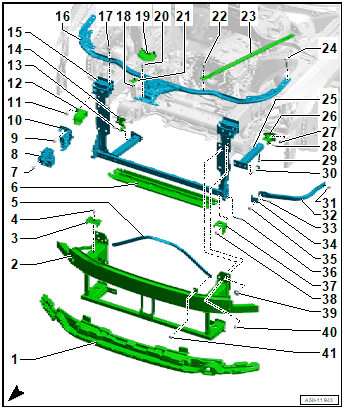

Overview - Lock Carrier
- Molded Foam Part
- Removing and Installing. Refer to MOLDED FOAM PART, REMOVING AND INSTALLING .
- Bumper Carrier
- Overview. Refer to OVERVIEW - BUMPER CARRIER .
- Support
- Bolt
- 5 Nm
- Diagonal Brace
- Removing and Installing. Refer to DIAGONAL BRACE, REMOVING AND INSTALLING .
- Air Duct
- Lower
- Bolt
- 8 Nm
- Spacer
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER SPACER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 5 Nm
- Bracket
- Bolt
- Quantity: 2
- 8 Nm
- Upper Bracket
- For the radiator mount
- Bolt
- Quantity: 2
- 24 Nm
- Bracket
- for wiring harness
- Lock Carrier
- Removing and Installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
- Connecting Part
- For the lock carrier
- Removing and Installing. Refer to CONNECTION PIECE, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 8 Nm
- Pop Rivet
- Only vehicles with high-voltage system
- Cover
- Bolt
- Quantity: 2
- 8 Nm
- Bracket
- Only vehicles with high-voltage system
- For refrigerant line
- Bolt
- Quantity: 2
- 24 Nm
- Upper Longitudinal Member
- Removing and Installing. Refer to UPPER LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 23 Nm
- Lower Longitudinal Member
- Removing and Installing. Refer to LOWER LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Bracket
- For the lower longitudinal member
- Removing and Installing. Refer to LONGITUDINAL MEMBER BRACKET, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- 10 Nm
- Bolt
- Quantity: 2
- 24 Nm
- Bolt
- 24 Nm
- Bolt
- Quantity: 2
- 24 Nm
- Nut
- Quantity: 2
- 8 Nm
- Connecting Brace
- Bolt
- Quantity: 2
- 8 Nm
- Bracket
- Bolt
- Quantity: 2
- 8 Nm
- Bolt
- Quantity: 2
- 8 Nm
- Lower Bracket
- Only vehicles with 4 or 6-cylinder engine without high-voltage system
- For the radiator mount
- Bolt
- 8 Nm
- Bolt
- Quantity: 8
- Tightening specification Refer to OVERVIEW - BUMPER CARRIER .
- Bolt
- Quantity: 2
- 5 Nm
- Bolt
- Quantity: 2
- 8 Nm
