Rear Center Armrest Cover, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Fold the rear center armrest.

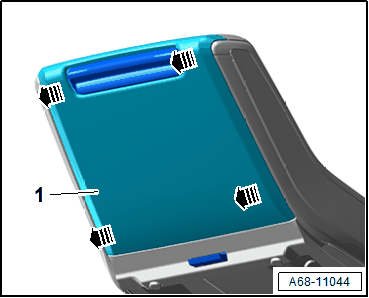

-- Remove the front cover -1- for the center armrest from the center armrest using the Wedge: T10383/1  or the Trim Removal Wedge: 3409  -arrows-.

-- Detach and remove the center armrest cover.

-- Disengage the gap cover -1- from the lower cover -arrows-.

Courtesy of AUDI OF AMERICA, LLC

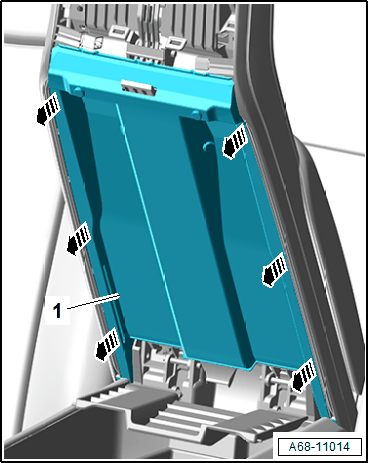

-- Remove the lower cover -1- for the center armrest from the center armrest using the Wedge: T10383/1  or the Trim Removal Wedge: 3409  -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Detach and remove the center armrest cover.
