Left Luggage Compartment Lamp -W18- /Right Luggage Compartment Lamp -W35-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

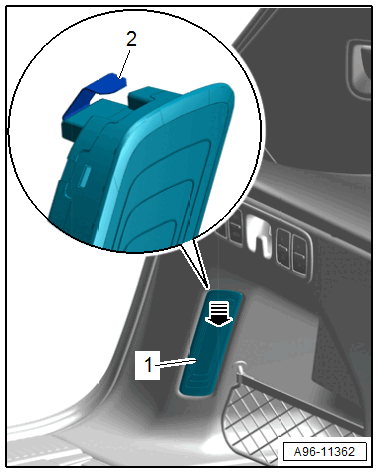

GWWA96-11362Courtesy of AUDI OF AMERICA, LLC

-- Release the retainer -2- with a flat-head screwdriver.

-- Pivot the luggage compartment lamp -1- out of the luggage compartment side trim panel in direction of -arrow-.

-- Disconnect the connector.
