Component Location Overview - Roof Trim Panel Lamps

WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

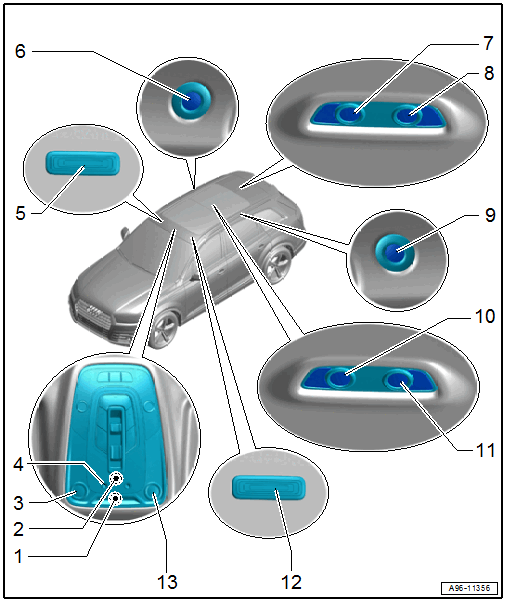

GWWA96-11356Courtesy of AUDI OF AMERICA, LLC
  1. Front Passenger Airbag -Disabled- Indicator Lamp -K145-
  2. Front Interior Lamp -W1-
  3. Driver Reading Lamp -W19-
  4. Ambient Lighting
  5. Front Passenger Vanity Mirror Lamp -W14-
  6. Right Rear Interior Lamp -W48-
  7. Left Third Row Reading Lamp -W94-
  8. Right Third Row Reading Lamp -W95-
  9. Left Rear Interior Lamp -W47-
  10. Left Rear Interior Lamp -W47-
  11. Right Rear Interior Lamp -W48-
  12. Driver Vanity Mirror Lamp -W20-
  13. Front Passenger Reading Lamp -W13-
