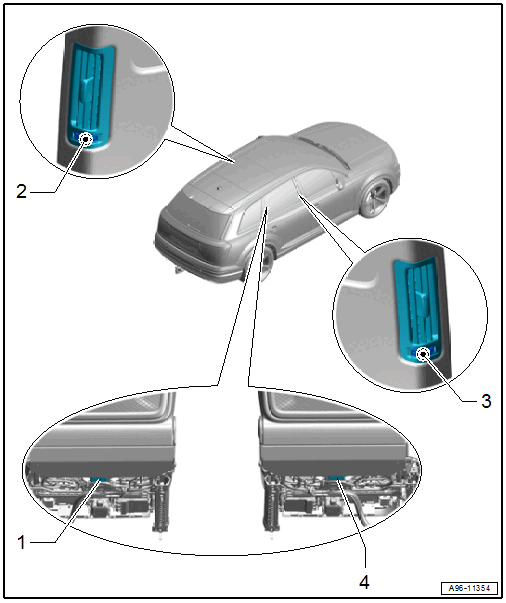

Component Location Overview - Lamps In Center Console, Seats And B-Pillar
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Left Footwell Lamp -W9-
- Removing and Installing. Refer to Left Footwell Lamp -W9- /Right Footwell Lamp -W10-, REMOVING AND INSTALLING .
- Left B-Pillar Vent
- Versions with Left Rear Air Vent Illumination Bulb -L88-
- Cannot be replaced separately if faulty.
- Replacing. Refer to OVERVIEW - B-PILLAR TRIM PANEL .
- Right B-Pillar Vent
- Vehicles with Right Rear Air Vent Illumination Bulb -L89-
- Cannot be replaced separately if faulty.
- Replacing. Refer to OVERVIEW - B-PILLAR TRIM PANEL .
- Right Footwell Lamp -W10-
- Removing and Installing. Refer to Left Footwell Lamp -W9- /Right Footwell Lamp -W10-, REMOVING AND INSTALLING .
